Haag-Streit Lenstar Myopia System

The Lenstar Myopia from Haag-Streit allows you to accurately measure axial length and track the progression of myopia in young patients based on growth curves provided by myopia experts. The work you do now can have a big impact later.

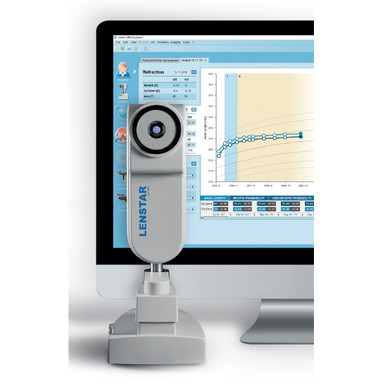

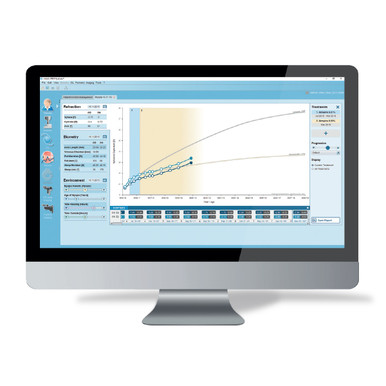

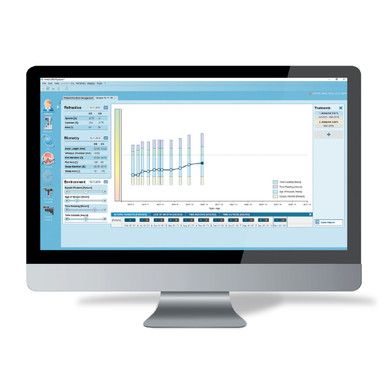

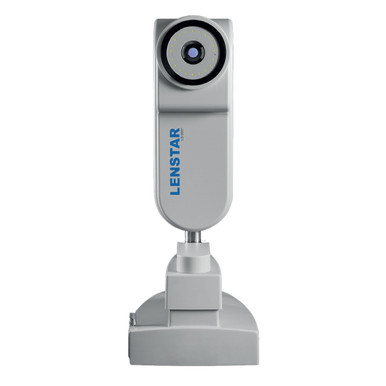

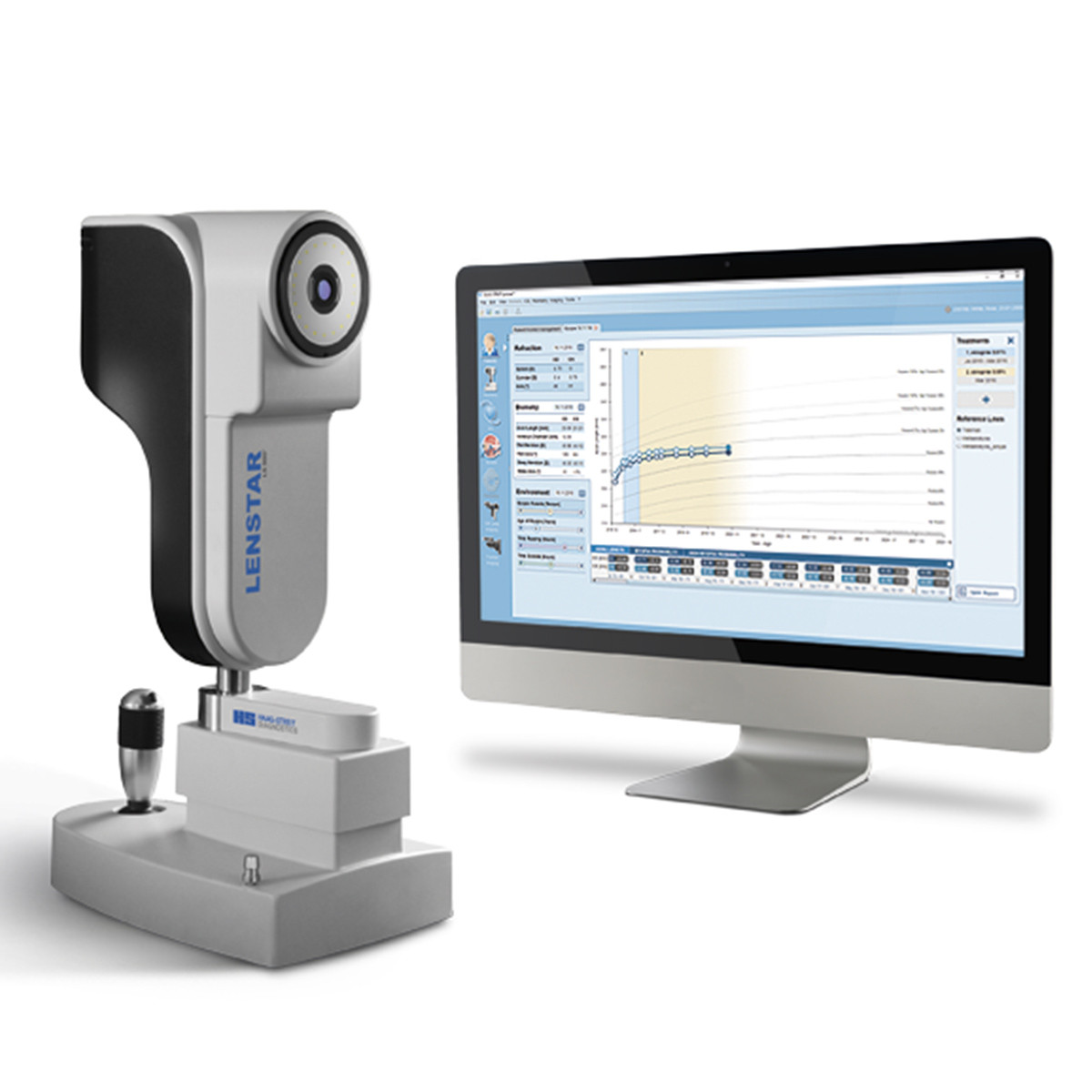

Your companion for myopia management, Lenstar Myopia consists of the Lenstar 900 optical biometer and the corresponding EyeSuite™ software, EyeSuite Myopia. The software also creates extraordinary graphics that can help you educate parents on their child’s condition. It’s a remarkable tool.

FEATURES

• Comprehensive myopia management
• Tried and tested refraction
• Axial length measurements
• Balance environmental factors
• Graphical visualisations
• Powerful reports
• Network connectivity

SPECIFICATIONS

Axial length

• Measurement range 14 – 32 mm
• Display resolution 0.01 mm

Vitreous chamber depth

• Measurement range 1 – 30 mm
• Display resolution 0.01 mm

Keratometry

• Measurement range for radius 5 – 10.5 mm
• Display resolution 0.01 mm
• Measurement range 0 – 180° for axis angle
• Display resolution 1°

Laser safety

• Class 1 laser product
• Electronic medical record system interfaces
• DICOM (SCU)
• EyeSuite Script Language
• GDT
• EyeSuite command line interface

The measurement ranges above are based on the device’s standard settings for automatic measurement and analysis.
