VA-1 Acuity System

Brand: Other


The VA-1 Acuity System is a complete visual acuity testing system with multiple optotype selections with Letters, Numbers, Landolt Rings, HOTV and Snellen children's charts

Read full product description



The VA-1 Acuity System is a comprehensive visual acuity testing solution.

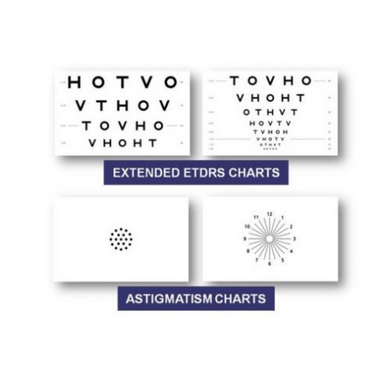

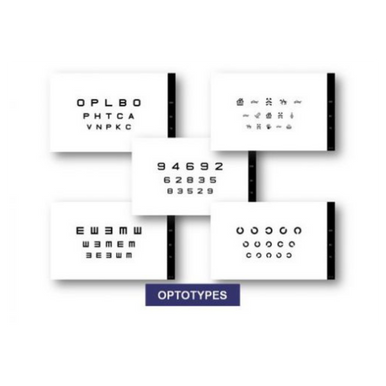

  • Multiple optotype selections with Letters, E’s, Numbers Landolt Rings, HOTV and Snellen children’s charts
  • All acuity slides presented with ETDRS spacing

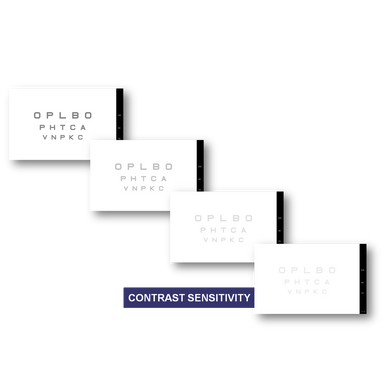

  • Contrast sensitivity testing
  • Crowding Bars for pediatric testing
  • R/G Binocular Tests
  • Multimedia System: Animations, cartoons, and education slides included and more can be added
  • Specialty slides including Ishihara tests

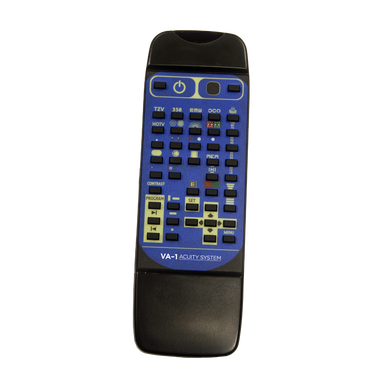

  • Intuitive remote controller
  • Randomization of optotypes
  • Custom sequences can be programmed
  • Memory button: allows instant slide selection of your selected slide
  • High resolution 24” LCD screen: provides optimal brightness for clear presentation of slides


Display: 24 inch WUXGA TFT LCD (1920×1200 pixels)
Brightness: Maximum 300 cd/m2
Dimension & Weight: 568mm (W) x 372mm (H) x 54mm (D), Approx. 4.9Kg
Power Supply: DC 12V 5A
Measuring Distance: 9-26 ft (2.7-8 m)
External Interface: 4x USB, 1x RS-232, 1x Ethernet (10/100)

*Installation is not included
