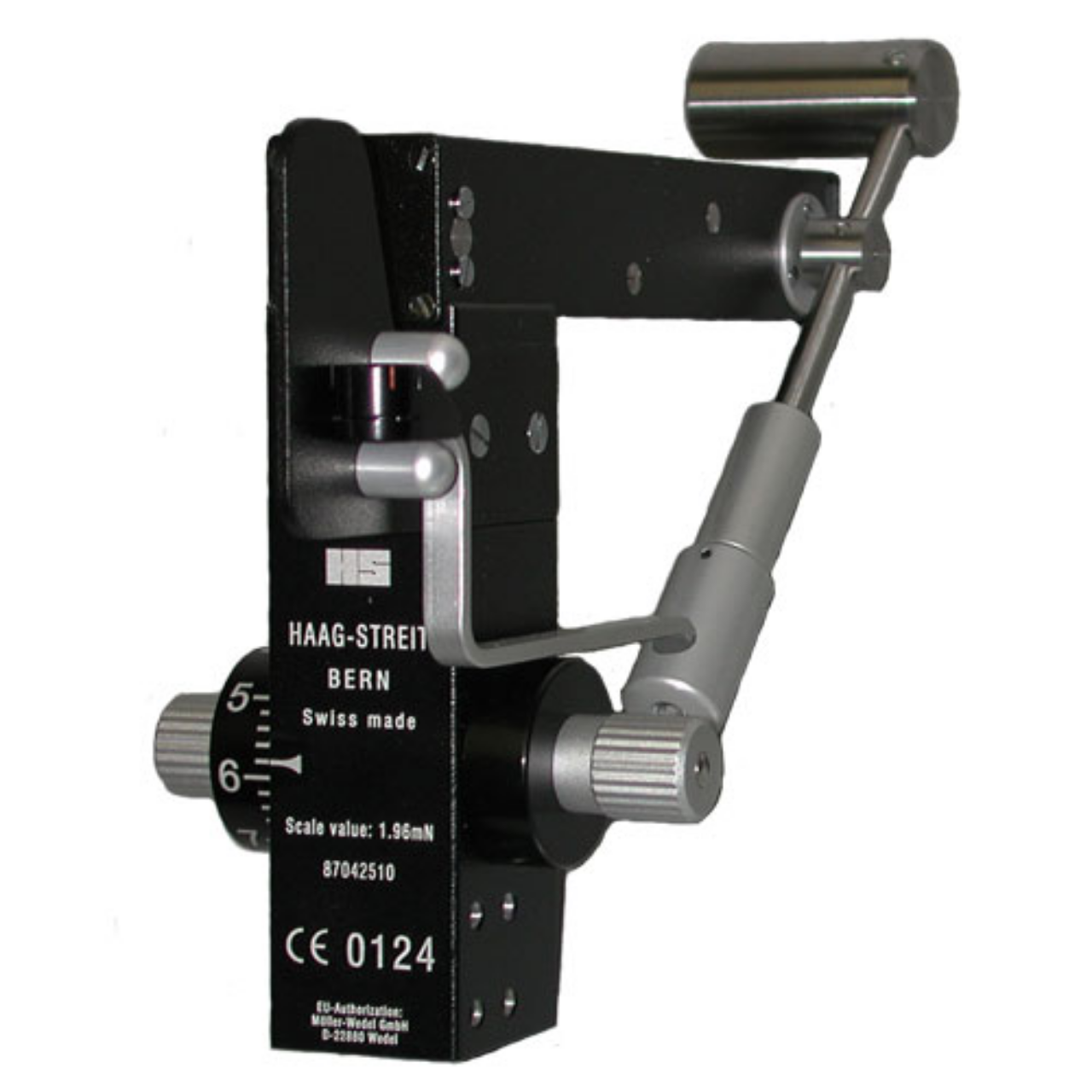

Haag-Streit 870 Tonometer

Brand: Haag-Streit


Haag-Streit Applanation Tonometer 870 is an accessory to slit lamps that offers high tonometry with a deviation of any single examination less than .5 mm Hg.

Read full product description

GOLDMANN APPLANATION TONOMETER (MODEL 870) : An extremely accurate device for the measurement of intraocular pressure between 0 to 78mmHg.

As the area of applanation is only 3.042mm the scleral rigidity does not influence readings.

The Haag-Streit 870 Applanation Tonometer is a powerful accessory to slit lamps that offers high accuracy tonometry with an average deviation of any single examination less than .5 mm Hg. The application of the Goldman method means that IOP measurements can be taken as part of a routine examination while the patient is at the slit lamp.

The Applanation Tonometer 870 is to be mounted over the microscope of the slit lamp. The feeler arm protrudes from above into the path of the microscope and the illumination unit. The Tonometer is ready for use with a single swing movement.

Disposable tonometer prisms (such as Tonosafe™) or resusable Goldmann measuring prisms can be used with all Haag-Streit tonometers.


  • Set the magnification to 10x
  • Adjust the illumination to medium intensity
  • Measuring prism at approx. 10°.
  • Measuring ocular pressure
  • 60° angle illumination to microscope
  • Value is directly readable on the instrument



  • Forced Generated: Via spring force
  • Installation: On / over the microscope
  • Measurement Range: 0 ― 80 mm Hg
  • Black Width: ≤0.49 mN
  • Net weight: 0.850 kg (without accessories)
  • Limiting Deviation: 0 to 32.66
