OPHTHALMIC

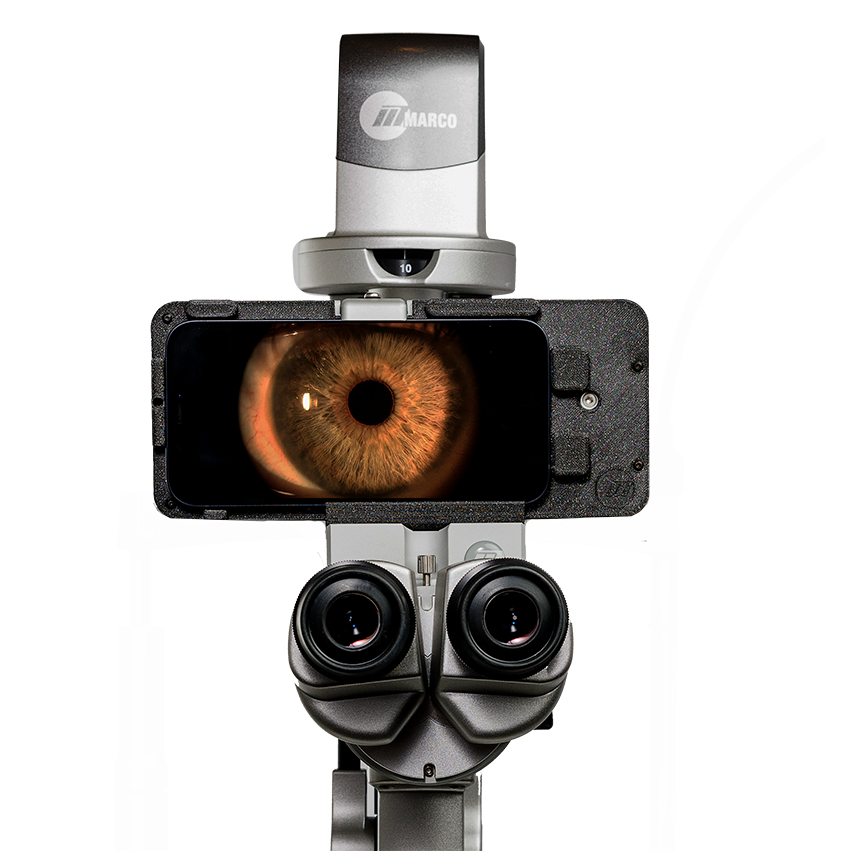

Marco ION Slit Lamp Imaging System

Brand: Marco

SKU: VI1MAIONBQP

Marco has redefined slit lamp imaging by combining a new intra-optics beam-splitter/camera adapter with Apple Technology called iON Imaging.

Read full product description

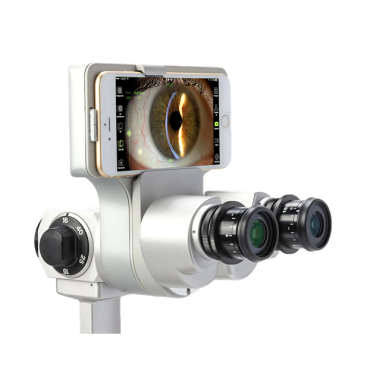

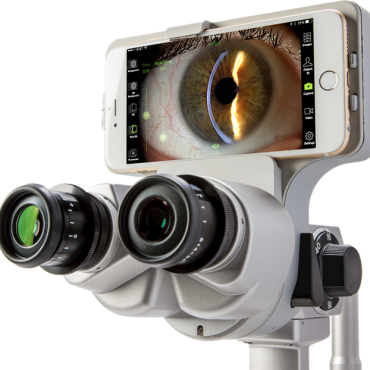

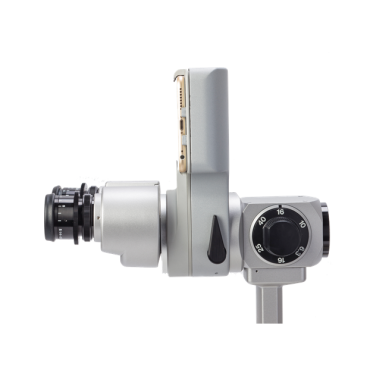

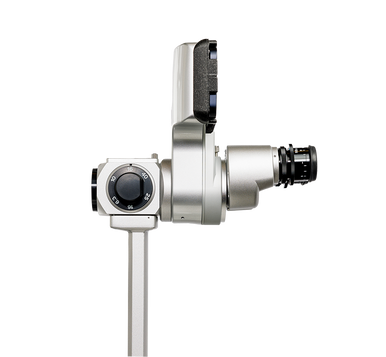

Slit lamp imaging is redefined with Marco’s iON anterior segment imaging system by combining a new intra-optics beam splitter/camera adapter with the tremendous computing and imaging power of Apple technology. Intuitive operation, optimized imaging, and immediate network integration are product hallmarks. Slit lamp and iPhone sold separately.

FEATURES

  • Heads-up display
  • Efficient – Capture images in 5 seconds or less
  • WiFi/Cableless connection to the LAN (EMR)
  • 12MP high-resolution images and 1080p/4K video
  • No additional hardware required in the exam room
  • Auto export feature to image management & EMR systems
  • HIPAA compliant

ION Compatible Slit Lamps

  • Marco: Ultra G2, G4, G5, G5-Zoom, M2, M4, M5, B2
  • Topcon: SL-D2, SL-D301, SL-D4, SL-D7, SL-2ED, SL-7E, SL-2G, SL-8Z
  • Zeiss: 100/16, 20SL & 30SL
  • Woodlyn: HR3; HR5 or SL9803x
  • Elan: 3 & Elan 5 Slit Lamps
  • CSO: SL990 & 9900(LED); SL980 & 9800
  • Haag Streit: BQ 900
  • Burton: 2000, SL-3MH & SL-3MZ, SL-860
  • Keeler: KSL-H & KSL-Z
  • Ibex: 5-Step
  • Nidek: SL1800
  • S4Optik: SL-Z3, SL-Z5, SL-ZZ, SL-H3, SL-H5, SL-HZ, H5 Elite, MW-50
  • Huvitz: HS-5000; HS-5500; HS-7000; HS-7500 (adapter required)

SPECIFICATIONS

HARDWARE

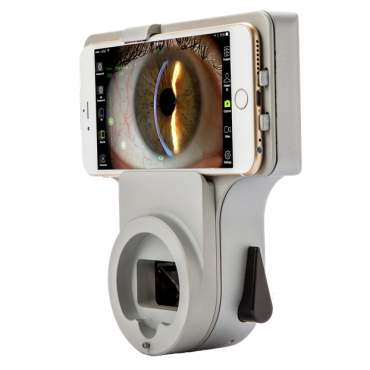

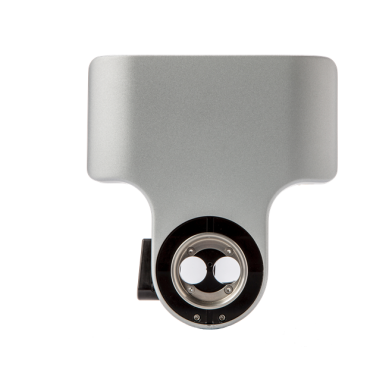

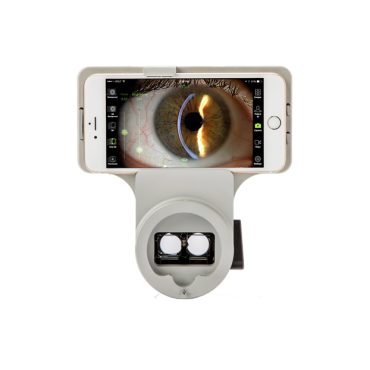

  • Type – Intra-Optics Beam-Splitter/Adapter
  • Beam-Splitter – 2-Position Lever; Down=100% to oculars; Up=70% to Camera/30% to oculars
  • Dimensions – 7″ x 2.5″ x 6.5″
  • Weight – 3 lbs
  • Image Capture Via – Bluetooth activated Foot-Switch or Joystick Button (Marco Slit Lamps only)
  • Camera* – Apple® iSight
  • Display – Apple® Retina HD Display; 5.5-Inch Diagonal LED Backlit
  • Camera Resolution – 1920 x 1080 Pixels at 401ppi
  • Video Resolution – 1080p HD video recording (30 fps or 60 fps)
  • Contrast Ratio – 1300/1
  • Processor – A8 (6 Plus) & A9 (6S Plus) chip with 64-bit architecture


SOFTWARE

  • Operating System – Apple® iOS 9 & Higher
  • Export To – Local Network; Cloud Storage & iOS/Photos
  • Capture Modes – Still image or HD Video
  • Security – HIPAA Compliant; Password Protected; AES Encryption
  • Imaging Technology – Apple®’s HDR, Focus Pixel, Optical Image Stabilization technology
  • Networking – Via Wi-Fi Connection
  • Included In The Box – ION Beam Splitter/Adapter, ION Imaging App, Bluetooth Control Unit, Power Adapter with 2-USB ports, 6′ USB Cable, Footswitch with 10′ Cable, 10′ Lightning iPhone Charging Cable, 10 Adhesive Cable Tie Mounts, 14 4″ Cable Ties, 2 1″ x 1″ Adhesive Velcro and 2 Vinyl Lens Covers

*Apple® iPhone sold separately.
